Adams Arms Standard Picatinny Block Piston Kit

he Adams Arms Retro-Fit Piston Drive System uses the same gas port on the barrel to work the action of our inverted piston. Instead of directing the gases into the receiver, they go into a gas plug and drive rod sleeve invented by Adams Arms. The gases are contained inside the drive rod sleeve and push the bolt carrier rearward using the gas pressure to cycle the action.

Adams Arms proprietary operating systems mechanically actuate the bolt carrier external of the receiver. This keeps the internal receiver and all the critical moving parts clean and free from heat and carbon build up.

Here are some of the main differences when using the Adams Arms Operating System:

• Short Stroke Free Floating Piston System
• Self Cleaning
• Carbon and gases are expelled forward, away from the operator
• Bolt Carrier Group and other critical components remain cool and clean
• Corrosive resistant coating processes
• Harmonics are not transferred into the barrel
• Adjustable gas settings for various applications
• Doesn’t vent direct to atmospheric pressure; this eliminates flash signature and supersonic crack which is optimal for night vision and suppressed fire

Please note that the Receiving Bushing and Installation Dowell are no longer included.

Features of Adams Arms Standard Picatinny Block Piston Kit:

To select the correct length kit, use the following measurements:

• Pistol: 4.846″ from barrel extension to shoulder
• Carbine: 7.866″ from barrel extension to shoulder
• Mid: 9.866″ from barrel extension to shoulder
• Rifle: 13.241″ from barrel extension to shoulder

Please note that the Receiving Bushing and Installation Dowell are no longer included.

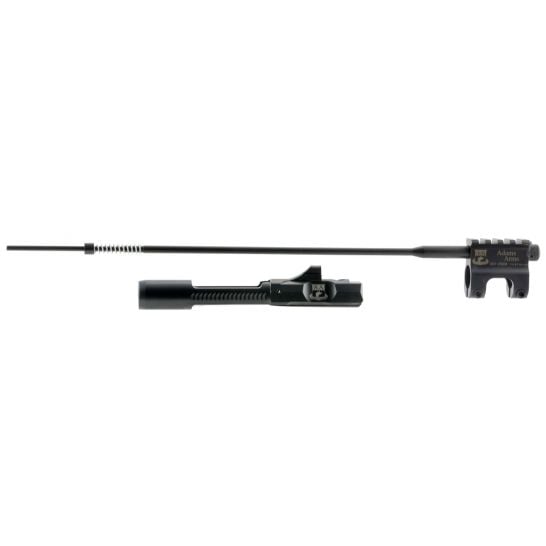

Package Contents:

Adams Arms Standard Picatinny Piston Kit

• Patented One-Piece Bolt Carrier
• .750″ Picatinny Gas Block with 3 settings (full gas for standard fire, half gas for suppressed, no gas for single shot)
• Gas Plug
• Bolt Spring
• Installation Instruction Card

Please note that the Receiving Bushing and Installation Dowell are no longer included.
